Product Overview:

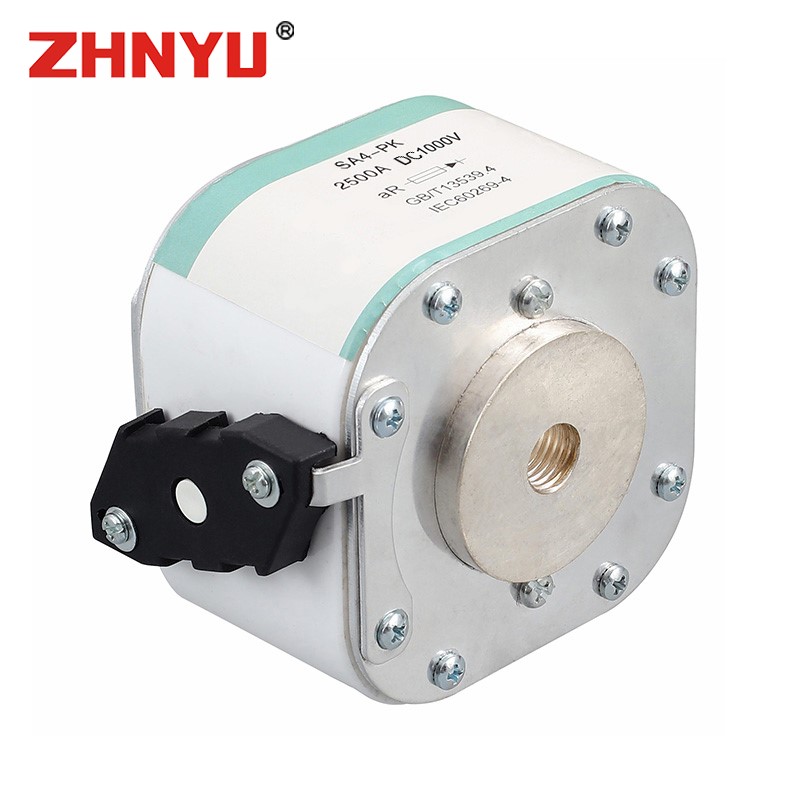

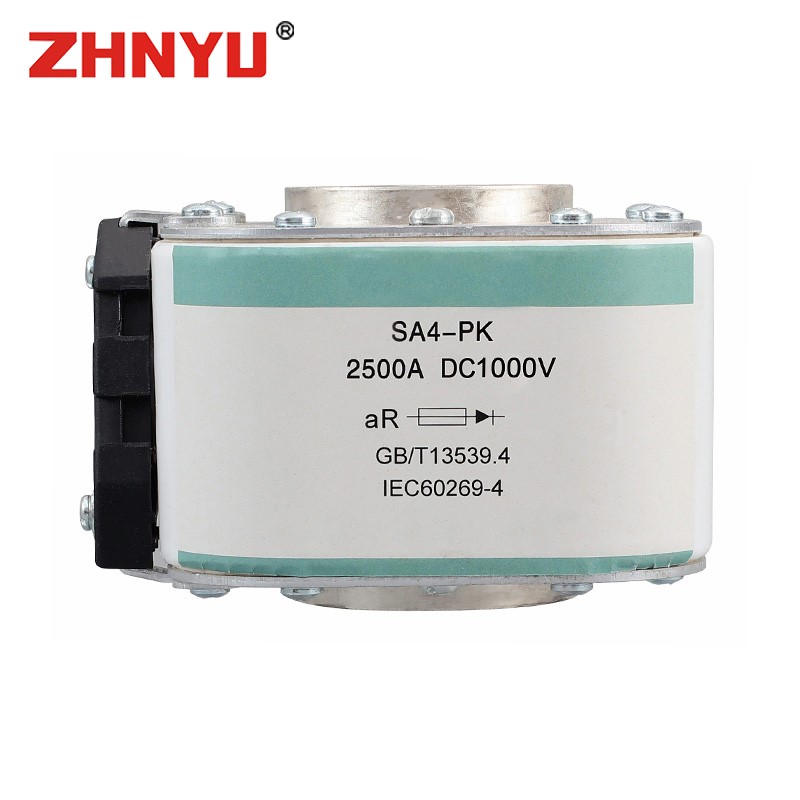

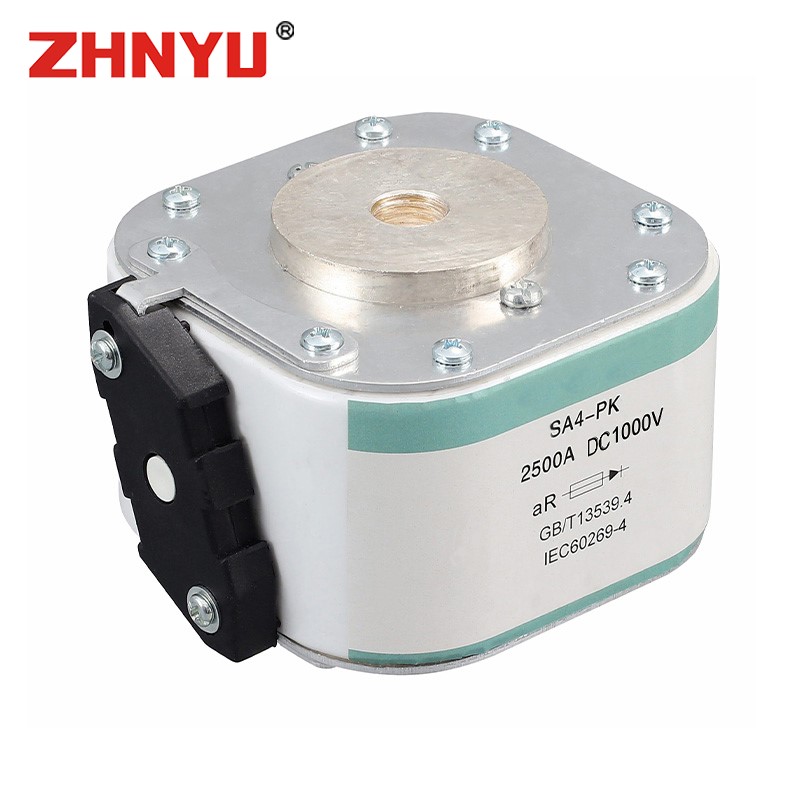

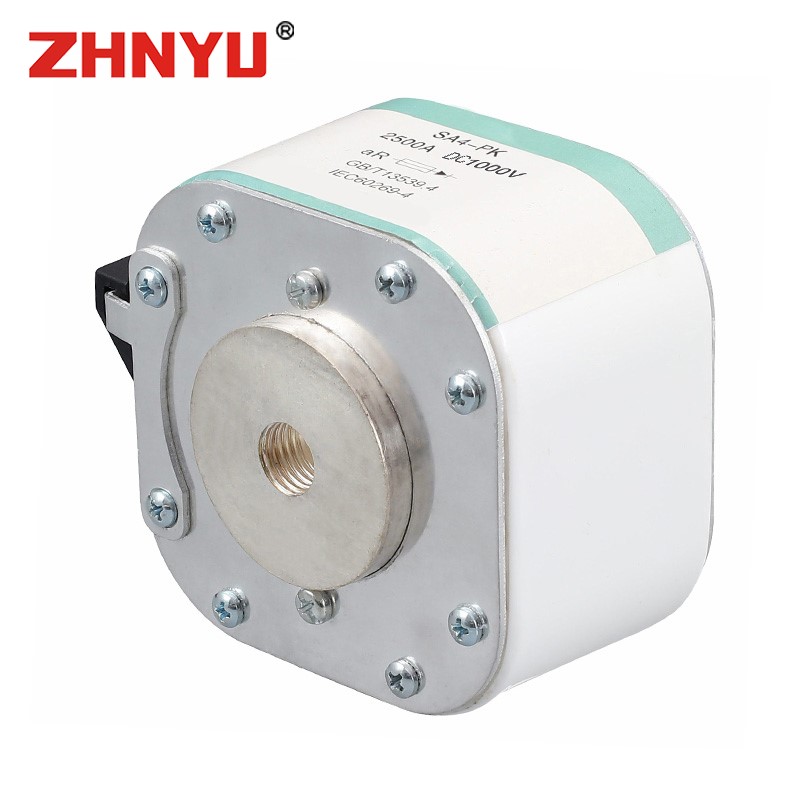

The SA4-PK ESS square body fuse is a safety protection solution specifically designed for energy storage systems (ESS). It complies with IEC60269, DIN43653, and GB/T13539.4 standards. The fuse is constructed with a robust square tube ceramic body that withstands high internal pressure and thermal shock.
Applications:
Ideal for energy storage systems (ESS), new energy power stations, battery clusters, PCS (Power Conversion System), DC combiner cabinets, inverters, semiconductor devices, rail transit, electric vehicles, telecommunications, and power industry equipment.
Key Features:
-
Rated voltage: AC1250V / DC1000V
-
Current rating range: 1000A – 2500A
-
Breaking capacity: AC200kA / DC100kA
-
Usage category: aR (semiconductor protection)
-
Square tube design with ceramic body – withstands high internal pressure and thermal shock
-
Fast response and high breaking capacity
-
Suitable for overload and short-circuit protection of power systems, inverters, semiconductor components and equipment
Quality Assurance:
Manufactured to rigorous specifications, ensuring fast and reliable interruption of fault currents, protecting your energy storage system investment.

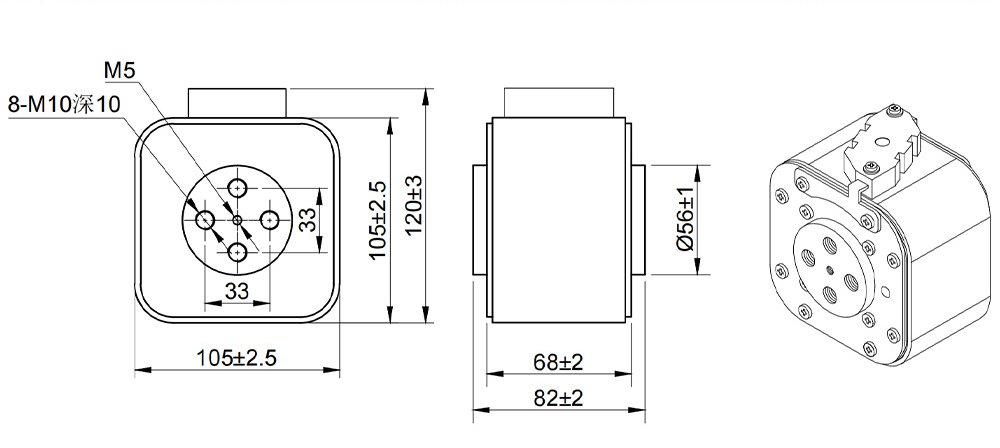

Dimensions:
Refer to technical datasheet for detailed dimensions.
