Product Overview:

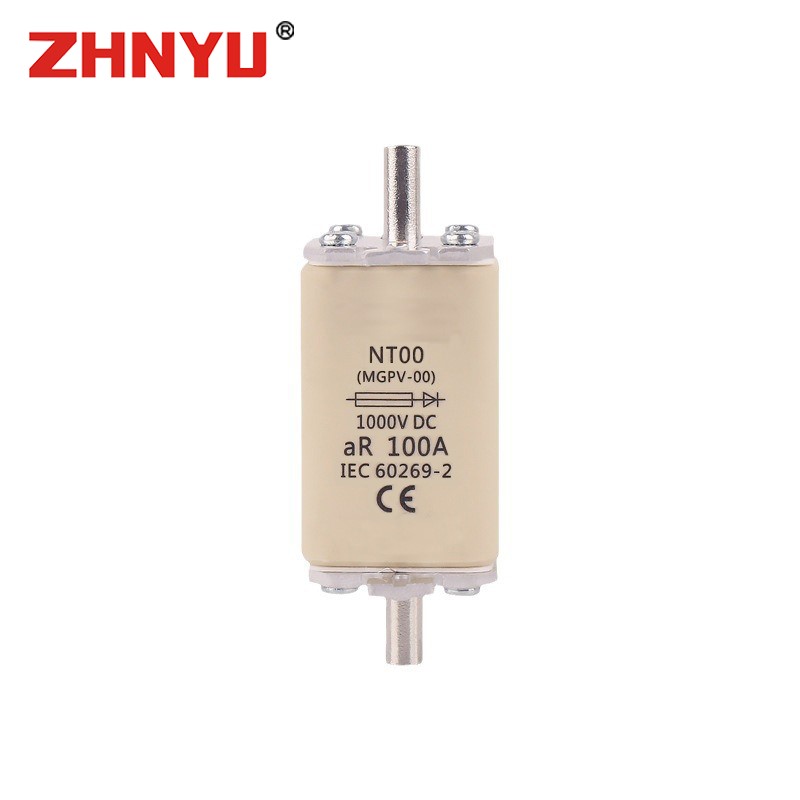

The NT00 gPV fuse link (square body / blade type) and matching fuse holder are designed to provide safe and reliable protection against overload and short circuit faults in high-current photovoltaic DC circuits, featuring excellent heat dissipation and robust terminal connections.
Applications:
Ideal for high-current PV DC combiner boxes, inverter output terminals, and battery energy storage systems (BESS), where large currents and stable long-term operation are required.
Key Features:
-
Current rating range: 32A, 40A, 50A, 63A, 80A, 100A
-
Rated voltage: 1000V DC
-
Breaking capacity: 50kA
-
Compliant with international standards: IEC 60269-6 (gPV)
-
RoHS approved for environmentally friendly manufacturing
-

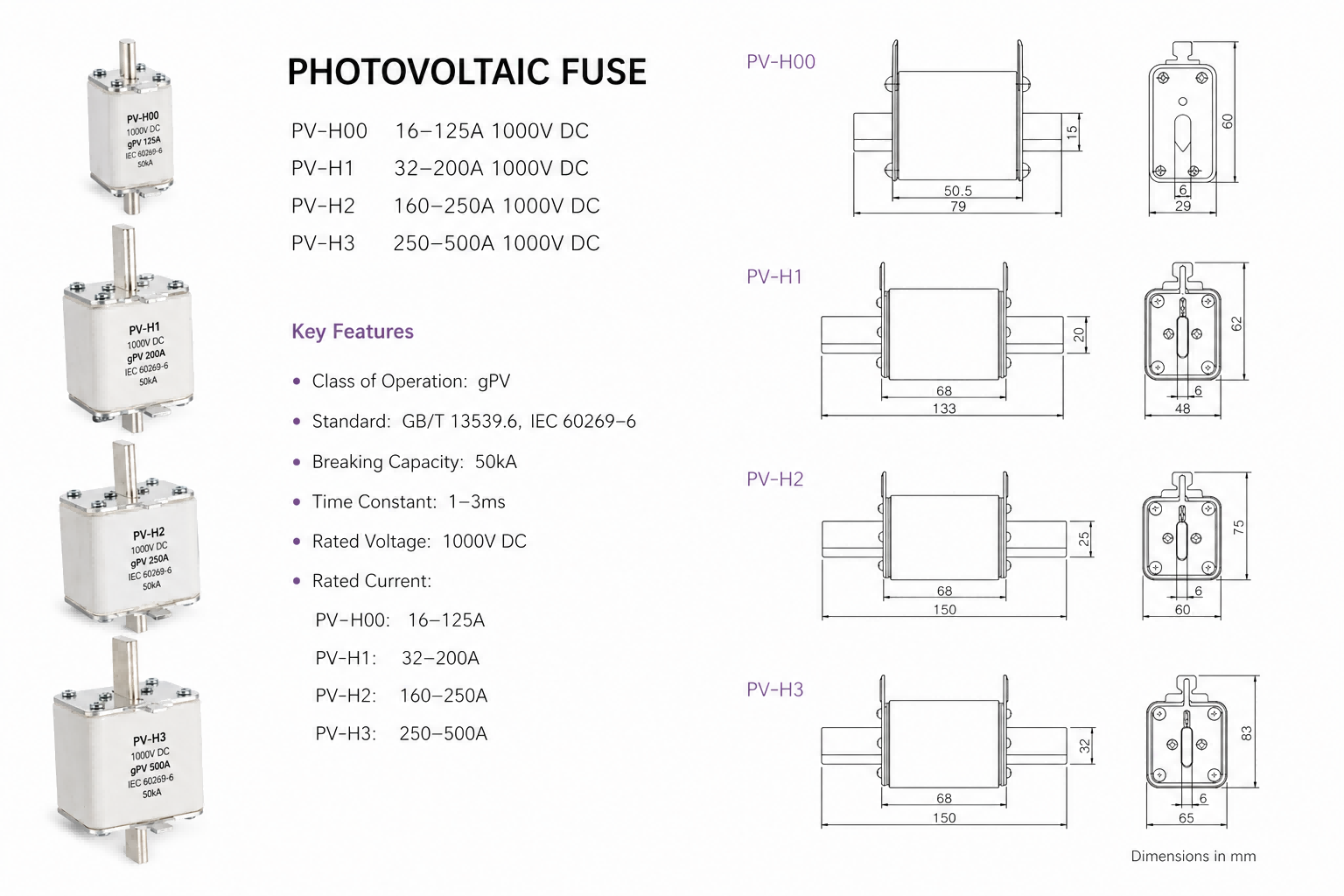

Square body / blade type design (model: PV-00 / NH00) – larger surface area for better heat dissipation
Quality Assurance:
Manufactured to rigorous specifications and fully certified, ensuring fast and reliable interruption of fault currents under harsh DC conditions, protecting your PV system investment.
