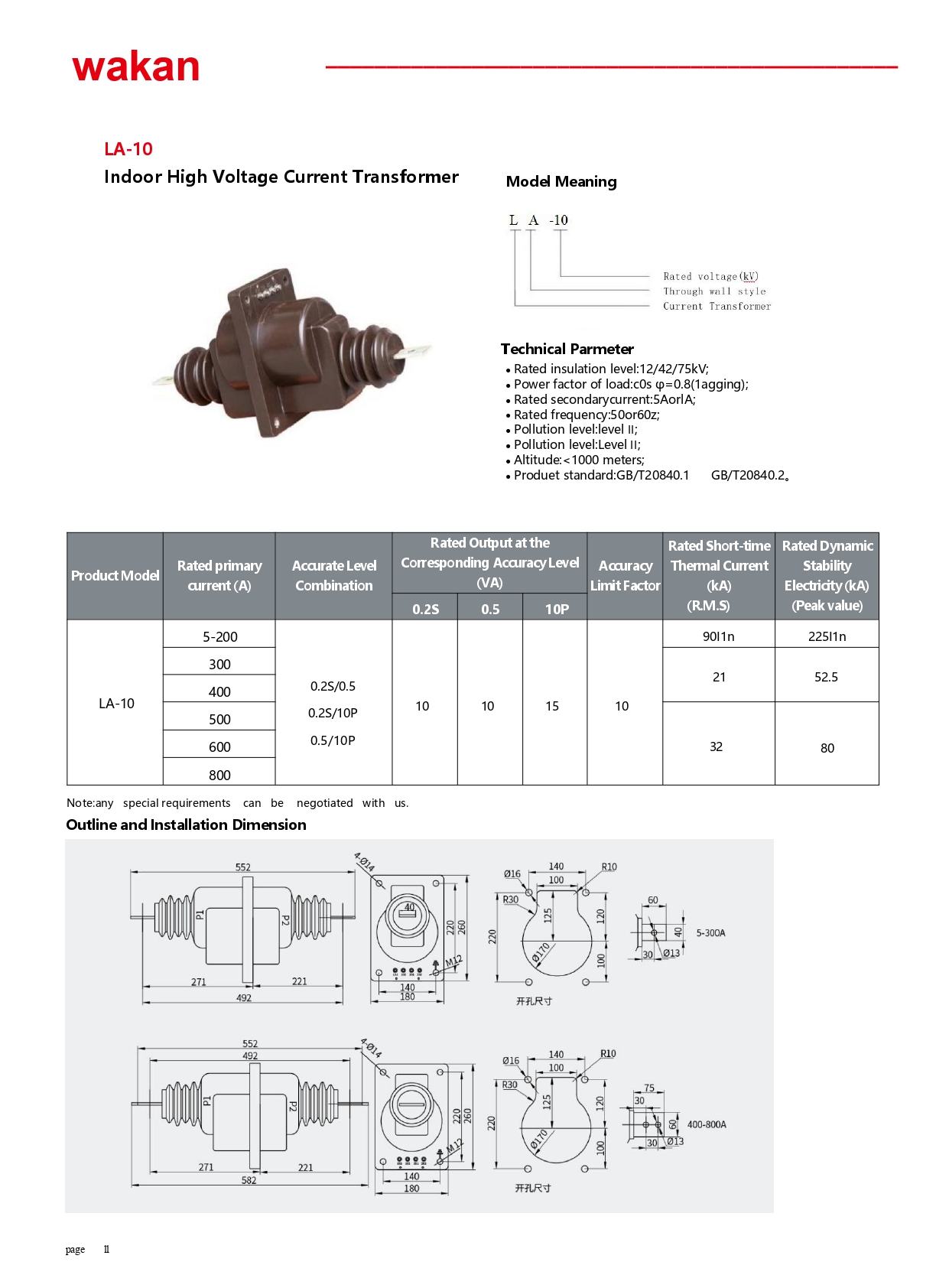

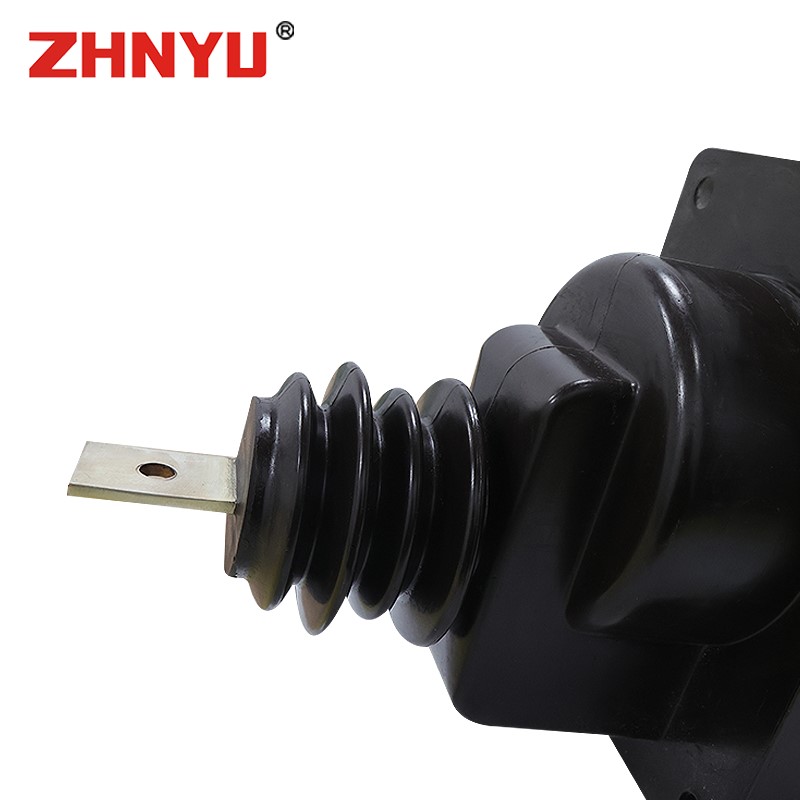

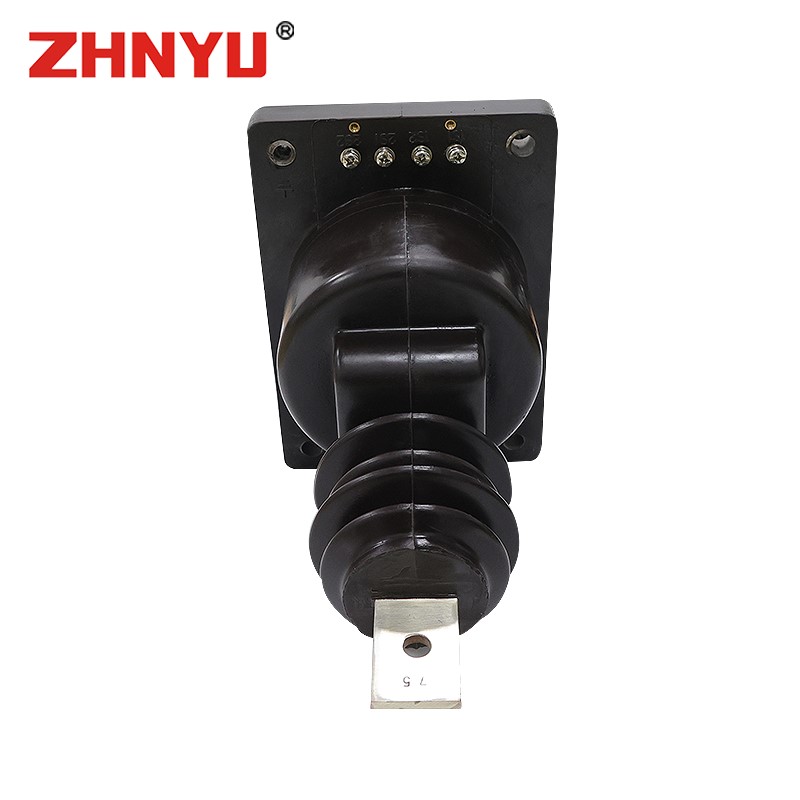

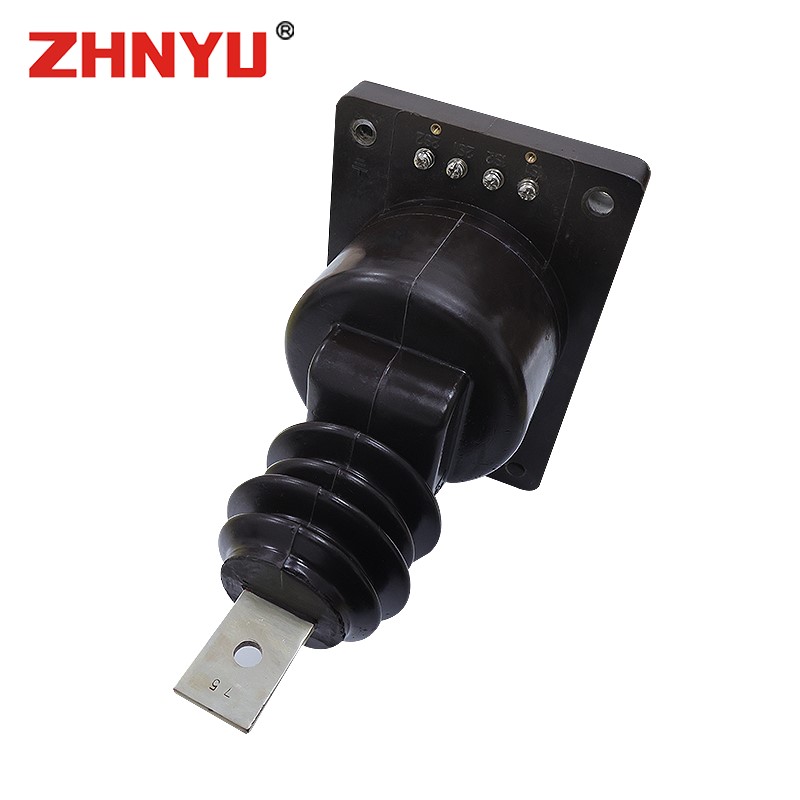

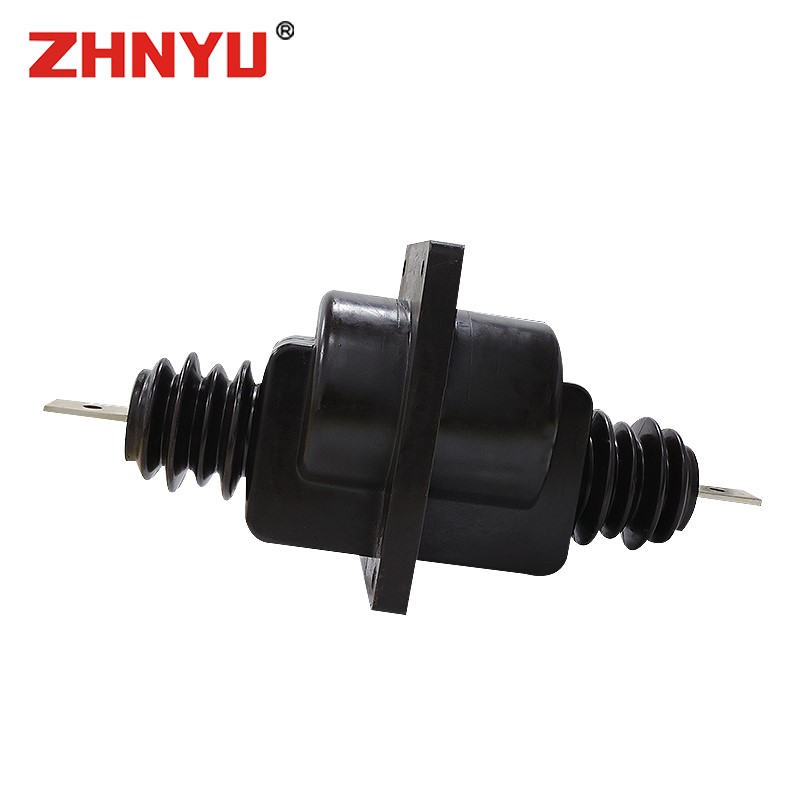

LA-10 Current transformer

LA-10Q current transformer is a wall-type epoxy resin casting insulation product, which is suitable for electric energy metering, current measurement and relay protection in power systems with rated frequency of 50Hz or 60Hz and rated voltage of 10kV and below.

Overview

Current transformers (CTs) are classified into outdoor and indoor types. Indoor CTs utilize epoxy cast insulation and are extensively used for current measurement, commercial energy metering, and relay protection in alternating - current networks with a nominal voltage of up to 12 kV, 24 kV, or 40.5 kV and a frequency of 50 Hz or 60 Hz.


Operating Conditions

Rated insulation level:12/42/75kV

Power factor of load:cOs φ=0.8(1agging)

Rated secondary current:5Aor 10A

Rated frequency:50 or 60Hz

Pollution level:level ll

Altitude:<1000 meter

Produet standard:GB/T20840.1GB/T20840.2.


Products Description
