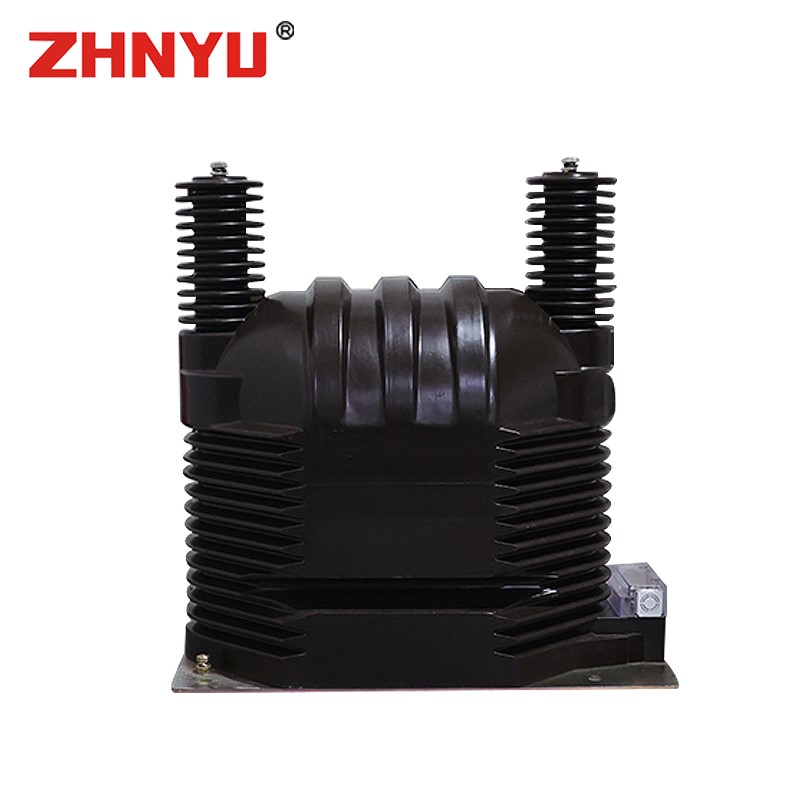

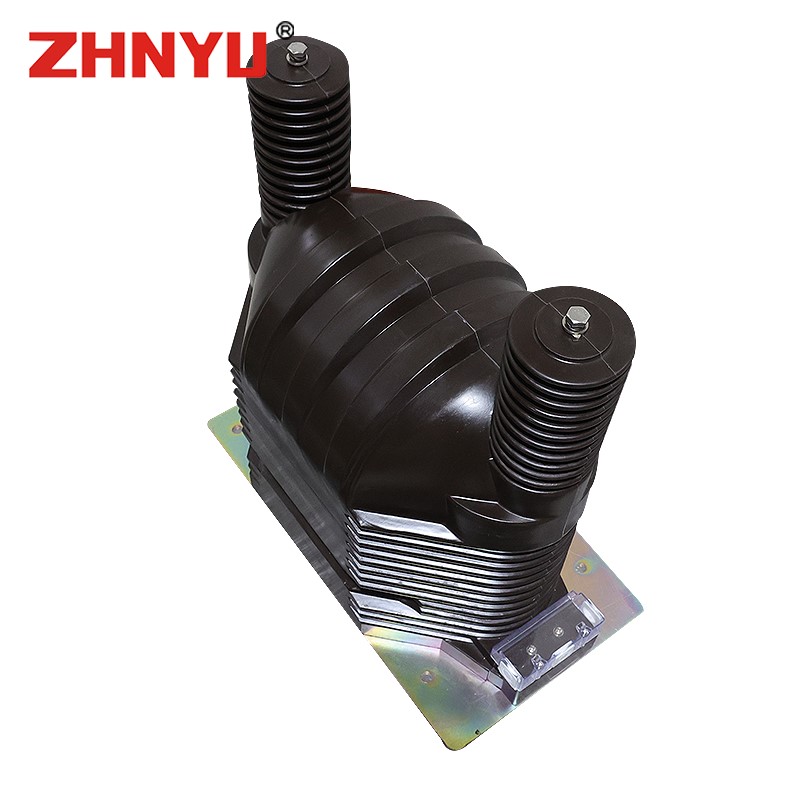

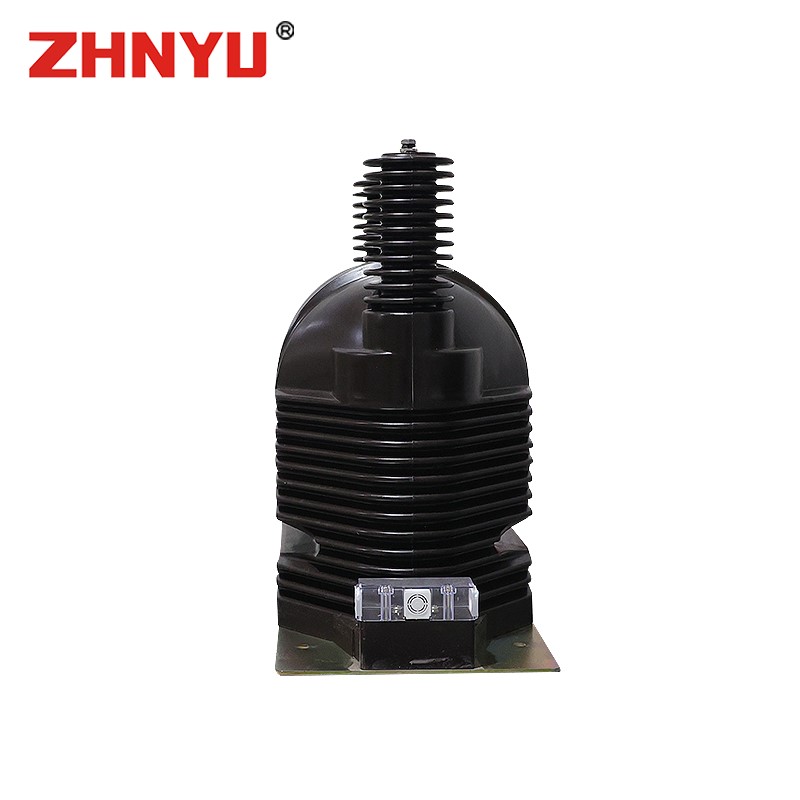

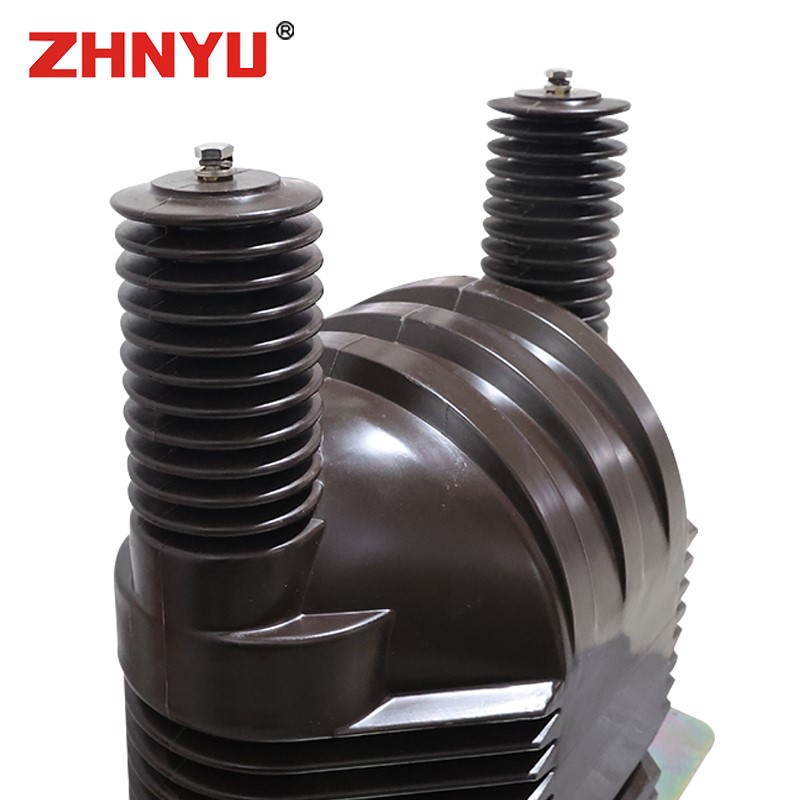

JDZ(X)9-35 Voltage Transformer

The indoor voltage transformer features an epoxy resin casting and a fully enclosed post structure. Its rated frequency can be either 50Hz or 60Hz, and it is suitable for power systems with a rated voltage of up to 6kV, 10(12)kV. This transformer is designed for measuring current, electric energy, and for relay protection purposes.
Moreover, it strictly complies with the IEC60044 - 2 standard, ensuring high - quality performance and reliability in indoor electrical applications.
Inquiry

Product details

Overview


JDZX35 series voltage transformers adopt a pillar-type fully enclosed structure with epoxy resin vacuum casting, specifically designed for 35kV power systems. Rated for 50Hz/60Hz operation and indoor installation, these units provide precise voltage measurement and relay protection through phase-to-earth connections.



Operation Conditions


Power factor of load: cOs φ=0.8(1agging)

Rated secondary current: 5A or 1A

Rated frequency: 50 or 60Hz

Pollution level: level ll

Altitude: <1500 meter

Produet standard: GB/T20840.1,GB/T20840.2.

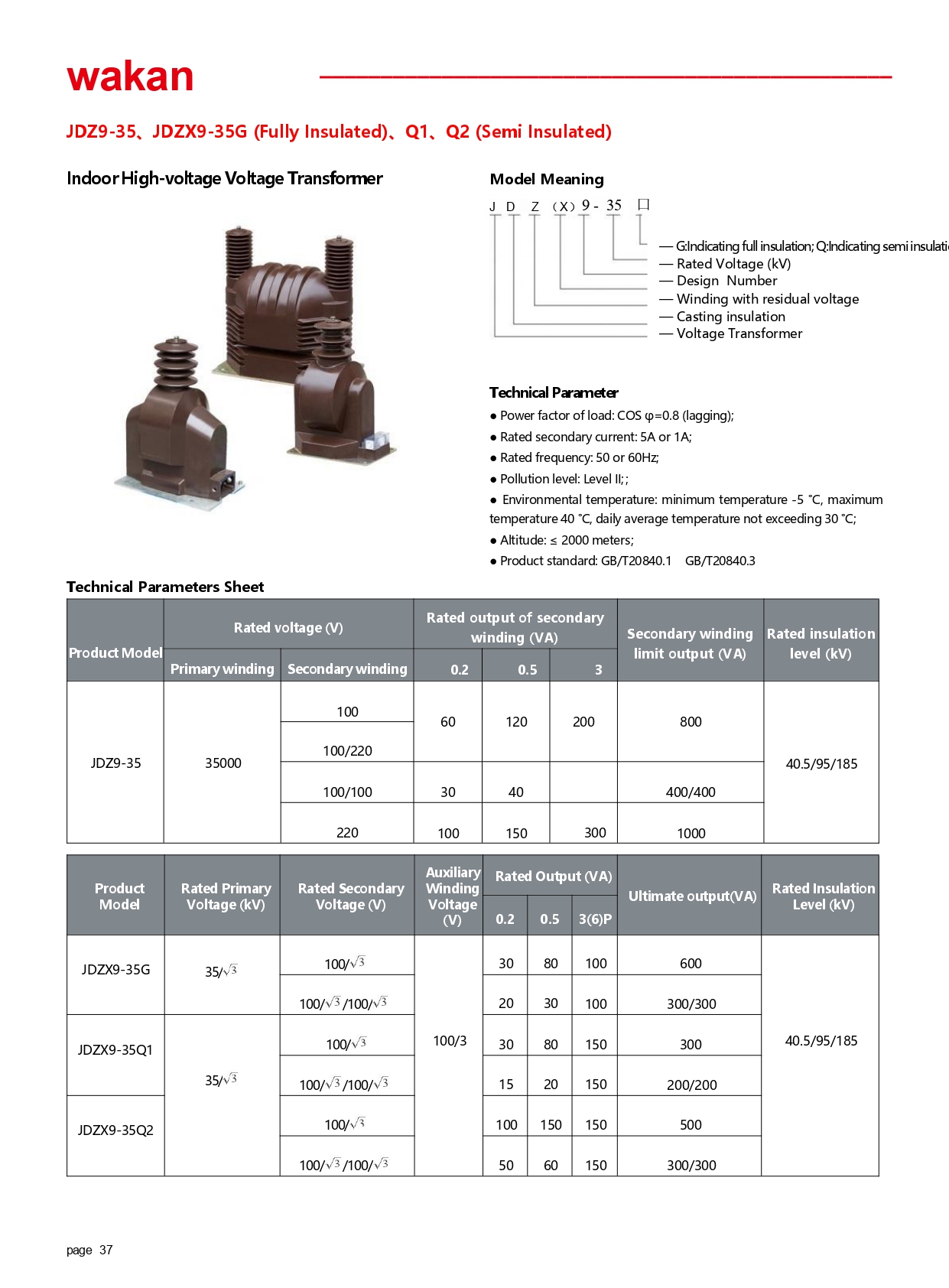

Main Technical parameter
